Power Magnets

Alloy : Alnico VI - Usual Application for Separators & Holding
Power Magnets

Power Magnets

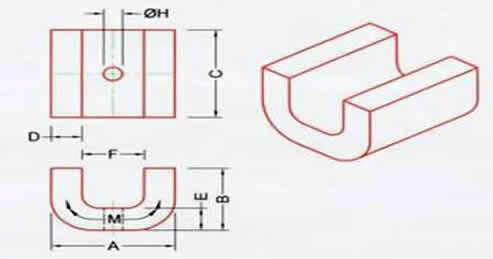

Magnet Drg No.
Dimensions In mm
Weight In Grams
Holding Force Kgwt
A
B
C
D
E
F
фH
6S3511
38.5
25.4
25.4
10.0
10.0
18.5
5.0
110
7
6S353
60
39.2
61.5
12.5
16.0
35.0
8.0
620
30
6S352
44.5
29.5
28.6
11.2
13.0
22.1
6.0
170
10
6S355
90
56.5
48
25.0
28.0
40
8.0
1230
50

Note: Holding force is measured subject to the following conditions: :
  • Power Magnets is magnetised to saturation
  • The object to be held should be a solid piece of a FerroMagnetic material (such as a mild steel block) of sufficient thickness so that it does not attain saturation during this operation. It must not be in the form of very thin sheet or loose particles.
  • There is close contact between the magnet poles and the surface of the object.
